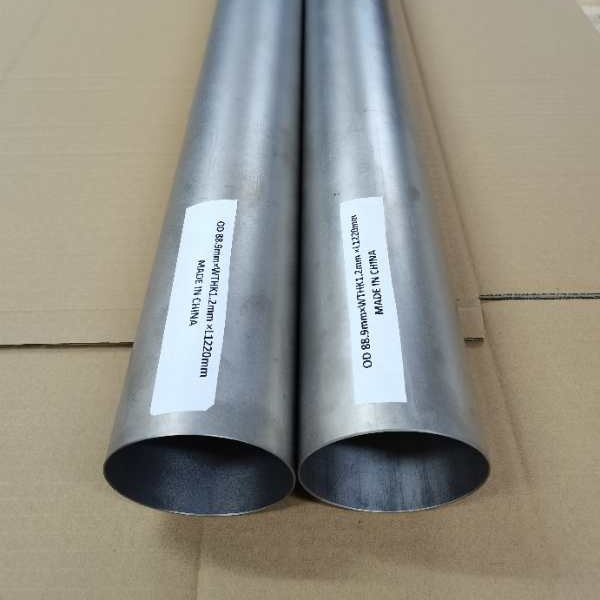

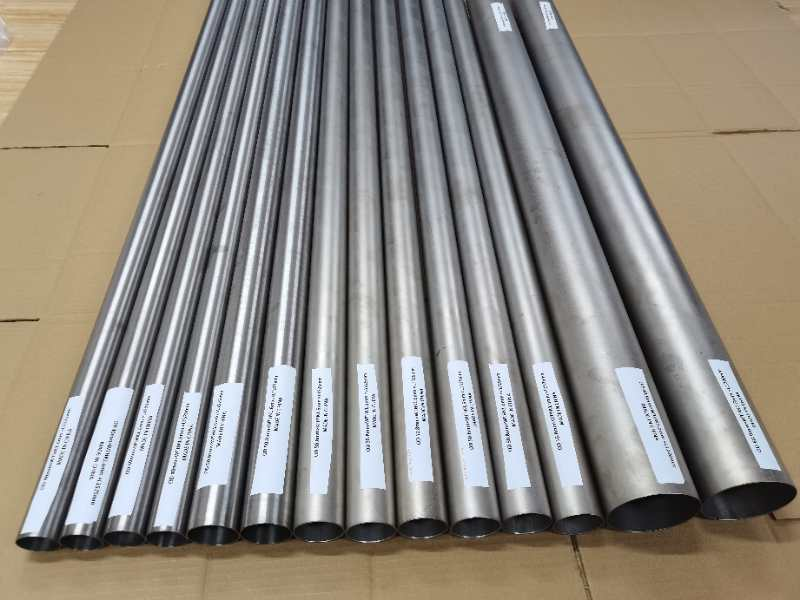

Commercial Pure Titanium Grade 2 Tube and Pipes

Titanium Alloy Grade 2 is “unalloyed” titanium offering an excellent balance of strength and ductility.
1.Size: Outer Diameter5mm~114mm×Wall Thickness0.5mm~10mm×Length25000mm;
2.Standard:ASMESB338;ASTM B861; ASTM B862;AMS4942;AMS4945;AMS4944;AMS4943; GB/T3625;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade 2 is “unalloyed” titanium offering an excellent balance

of strength and ductility. The material has good toughness and is readily

weldable. This material is very corrosion resistant in highly oxidizing and

mildly reducing environments.

Standard: ASMESB338; ASTM B861; ASTM B862;AMS4942;AMS4945;AMS4944;AMS4943; GB/T3625;

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade2	3.7035	R50400

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Commercial Pure Titanium Grade2	Balance	0.08	0.3	0.03	0.25	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade2

345

275
