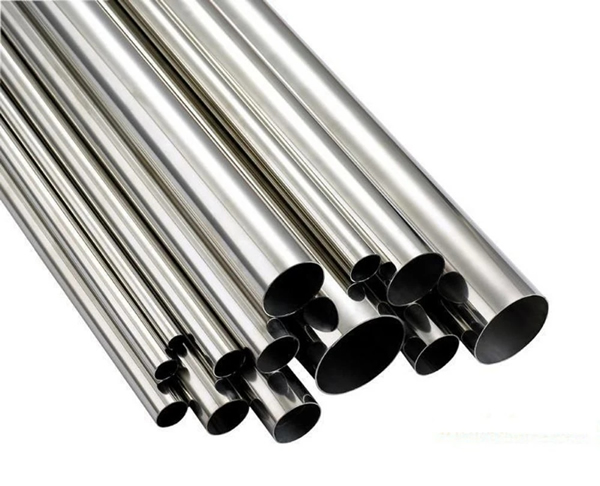

Titanium alloy Grade 9 Ti-3Al-2.5V Tubes and Pipes

1.Ti-3Al-2.5V alloy is an alpha alloy that is strengthened by cold working. The material exhibits good ductility and toughness.
2.Size: Size: Outer Diameter6mm~50.8mm×Wall Thickness0.7mm~3mm;
Products Inquiry

Product Details

Titanium Alloy Grade9 Ti-3Al-2.5V alloy is an alpha alloy that is strengthened by cold working. The material exhibits good ductility and toughness. It is used in a wide range of tubular products from aircraft ducting to golf club shafts and bicycle frames. The alloy is available as wire, bar, sheet, seamless and welded tubing. ASME code approved.



Standard Specification: ASTM B338, ASTM B861, ASTM B862, AMS 4944, 4945



Standard

Werkstoff No.

UNS

Titanium Alloy Grade9 Ti-3Al-2.5V

3.7195

R56320



Technical Data Sheet

Chemical Composition

Weight %

Ti

Al

V

C

Fe

N

O

H

Titanium Alloy Grade9 Ti-3Al-2.5V

Balance

2.5~3.5

2.0~3.0

0.08

0.25

0.03

0.15

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade9 Ti-3Al-2.5V

90

620

70

483

15

25
