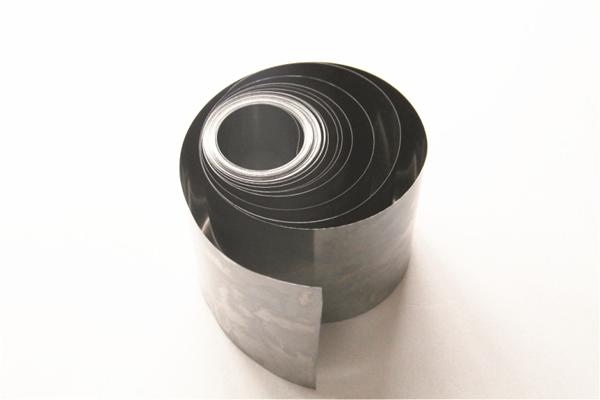

Commercial Pure Titanium Grade3

Titanium Alloy Grade 3 is “unalloyed” titanium offering improved strength, moderate ductility, and ASME Code design allowables. The material is readily weldable. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
Size: Thickness0.01mm~0.1mm×Width10mm~600mm×Coil mm;
Products Inquiry

Product Details

Titanium Alloy Grade 3 is “unalloyed” titanium offering improved strength,moderate ductility, and ASME Code design allowable. The material is readily weldable. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.

Standard Specification: ASTM B265 , ASME SB265, ASTM F67, AMS-T-9046B CP4 AMS 4940 MIL-T-9046J CP4

Standard

Werkstoff No.

UNS

Commercial Pure Titanium Grade3

3.7055

R50550







Technical Data Sheet

Chemical Composition

Weight %

Ti

C

Fe

N

O

H

Commercial Pure Titanium Grade3

Balance

0.08

0.3

0.05

0.35

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade3

64

450

55

380

18

30
