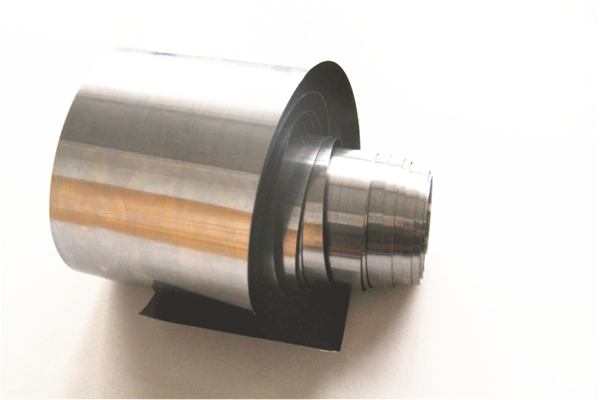

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni Foil

Titanium Alloy Grade 12 is lightly alloyed near-alpha alloy offering improved strength at elevated temperatures and optimum ASME Code design allowables. The material is readily weldable, and has superior crevice corrosion resistance. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
Size: Thickness0.01mm~0.1mm×Width10mm~600mm×Coil mm;
Products Inquiry

Product Details

Titanium Grade 12 is similar to Grade 2 and Grade 3 except Grade 12 has the addition of Mo and Ni. These additions to Grade 12 offer a lower cost option than the Palladium bearing grades. Grade 12 has high strength, good heat and wear resistance and is highly weldable. Grade 12 is used for Chemical Processing, Power generation, Desalination, Marine Hydrocarbon processing and Mining.



Standard Specification:

Standard

Werkstoff No.

UNS

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni

3.7105

R53400



Technical Data Sheet

Chemical Composition

Weight %

Ti

Ni

Mo

C

Fe

N

O

H

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni

Balance

0.6/0.9

0.2/0.4

0.08

0.3

0.03

0.25

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade9 Ti-3Al-2.5V

70

483

50

345

18

25
