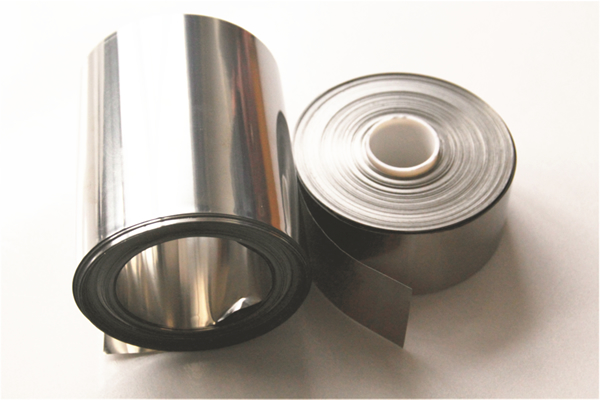

Commercial Pure Titanium Grade1

Titanium Alloy Grade 1 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable of deep drawing;
Size: Thickness0.01mm~0.1mm×Width10mm~600mm×Coil mm;
Products Inquiry

Product Details


Standard

Werkstoff No.

UNS

Commercial Pure Titanium Grade1

3.7025

R50250





Technical Data Sheet

Chemical Composition

Weight %

Ti

C

Fe

N

O

H

Titanium CP Grade 1

Balance

0.08

0.02

0.03

0.15

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Grade 1

35

240

20

138

24

30
