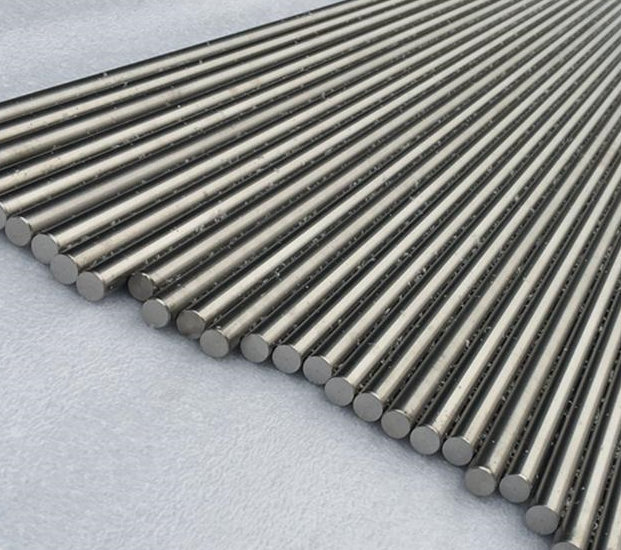

Titanium Alloy Grade23 Ti-6Al-4VELI (Extra low interstitials) Bar and Rod

1.Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plusbeta class, and is also the most common of all titanium alloys. This modification incorporates extra low interstitials (ELI).
2.The wrought material is used in applications where moderate strength, good strength to weight, and favorable corrosion properties are required.
3.Size: Φ7mm~Φ230mm;
Products Inquiry

Product Details

Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus beta class, and is also the most common of all titanium alloys. This modification incorporates extra low interstitials (ELI). The wrought material is used in applications where moderate strength, good strength to weight, and favorable corrosion properties are required. This alloy is commonly used in medical implants where strength is important.

Standard Specification: ASTM B348 ASME SB348, AMS 4928, ASTM F136, ISO, DINAWS A5.16 (ERTi-23)



Standard

Werkstoff No.

UNS

Titanium Alloy Grade23 Ti-6Al-4VELI (Extra low interstitials)

3.7165

R56407



Technical Data Sheet

Chemical Composition

Weight %

Ti

Al

V

C

Fe

N

O

H

Titanium Alloy Grade23 Ti-6Al-4VELI (Extra low interstitials)

Balance

5.5~6.5

3.5~4.5

0.08

0.25

0.03

0.13

0.0125



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade23 Ti-6Al-4VELI (Extra low interstitials)

120

828

110

759

7.5H,6.0I

25

H: For Product section or wall thickness values＜1.0 in.;

I: For product section or wall thickness values≥1.0 in.;
