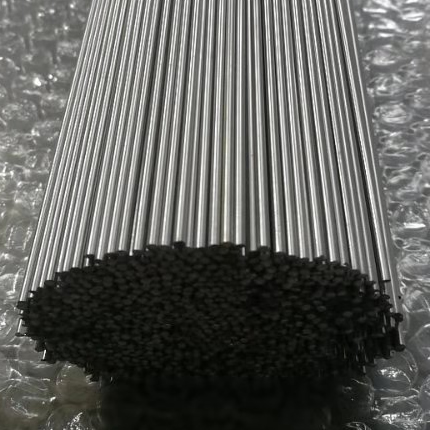

Commercial Pure Titanium Grade 4 Wire

1.Titanium Alloy Grade 4 is “unalloyed” titanium offering improved strength, moderate ductility. The material is readily weldable.
2.This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
3.Size: Φ0.1mm~Φ7mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade 4 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable of deep drawing.

Standard Specification: ASTM B863, ASME SB863, ASTM F67, ISO, DIN AMS-T-9046 CP4 / AMS 4940;

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade4	3.7065	R50700

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Commercial Pure Titanium Grade4	Balance	0.08	0.5	0.05	0.4	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade4

550

483
