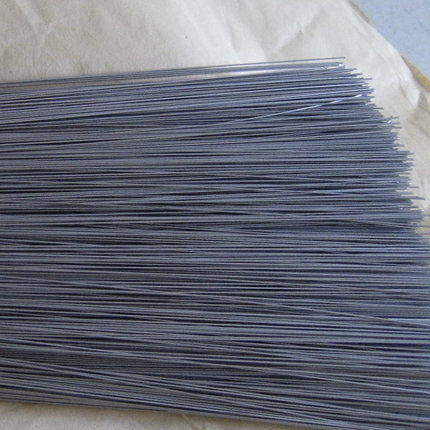

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni

1.Titanium Alloy Grade 12 is lightly alloyed near-alpha alloy offering improved strength at elevated temperatures and optimum ASME Code design allowables. The material is readily weldable, and has superior crevice corrosion resistance.
2.This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
3.Size: Φ1.0mm~Φ7mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade 12 is lightly alloyed near-alpha alloy offering improved strength at elevated temperatures and optimum ASME Code design allowables. The material is readily weldable, and has superior crevice corrosion resistance. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.

Standard Specification: ASTM B863, ASME SB863, ASTM F136, ISO, DIN AWS A5.16 (ERTi-12);

Standard	Werkstoff No.	UNS
Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni	3.7105	R53400

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni	Balance	0.08	0.3	0.03	0.25	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade9 Ti-3Al-2.5V

483

345

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni
