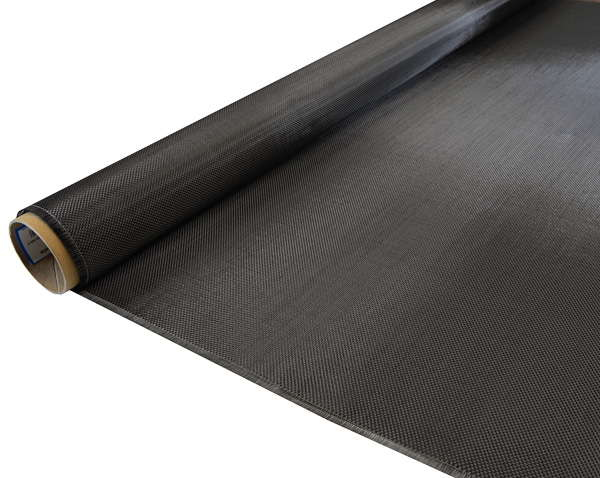

Carbon fiber woven cloth 1K plain

GOOLEE ® Series carbon fiber cloth is woven with high-strength carbon fiber. In the production process, the yarn is controlled by constant tension, and the fiber bundle is flat and straight. Its unidirectional braided structure can give full play to the tensile strength advantage of carbon fiber; It has the advantages of light weight, high strength, excellent durability and corrosion resistance; Effective setting process is adopted, and there is no loose deformation during cloth cutting; Easy glue spreading and convenient construction.
Products Inquiry

Product Details

Specification:

Specification

Fiber Type

Fabric structure

Warp and weft density of fabric structure

Gram weight (g/m²)

Thickness(cm)

Width(mm)

GOOLEE-01P-100

1K

Plain weave

7.5

100

0.14

100

GOOLEE-01P-120

1K

Plain weave

9

120

0.16

100

GOOLEE-01T-120

1K

TWill

9

120

0.16

100

GOOLEE-1P-140

1K

Plain weave

10.5

140

0.17

100

GOOLEE-01T-140

1K

TWill

10.5

140

0.17

100

GOOLEE-03P-180

3K

Plain weave

4.5

180

0.28

100

GOOLEE-03P-200

3K

Plain weave

5

200

0.30

100

GOOLEE-03T-200

3K

TWill

5

200

0.30

100

GOOLEE-03P-240

3K

Plain weave

6

240

0.32

100

GOOLEE-03T-240

3K

TWill

6

240

0.32

100

GOOLEE-03P-280

3K

Plain weave

7

280

0.34

100

GOOLEE-03T-280

3K

TWill

7

280

0.34

100

Application

Type

Application Line

Characteristics of utilization

Industry

Automotive

Natural compressed gas tank CNG, transmission shaft, leaf spring, brake pad, car body, hood, wheel, covering parts, etc

Lightweight, high speed, fatigue resistance and shock absorption

Train

Carriage, seat, luggage rack, brake pad, steering slider, superconducting support frame, pantograph, hood, etc

Lightweight, high speed, fatigue resistance, wear resistance

motorcycle

Hood, muffler cover, helmet, brake pad

Lightweight, shock absorption and sound absorption

energy

Fuel cell electrode and grid plate

Conductive and corrosion resistant

Centrifuge

Light weight, corrosion resistance and radiation resistance

Fan blade, engine retaining ring, flywheel

Lightweight, fatigue resistance and shock absorption

Pipes and ropes for offshore oil fields

Corrosion resistance and lightweight

civil engineering

Carbon fiber reinforced cement, wood

Lightweight, strength, rigidity, corrosion resistance and fire resistance

reinforce

Constructability and easy operation

Bridge anchor rod, rope, etc

Weather resistance, rigidity and lightweight

Chemical Engineering

Sealing filler, thermal insulation material, etc

Weather resistant, wear-resistant, self-lubricating and conductive

medical apparatus and instruments

X-ray instrument bed board, biomaterial, CT bed

X-ray transmittance and biocompatibility

textile machinery

Electrostatic brush, arrow rod

Conductive, light weight, fatigue resistance, shock absorption and sound absorption

Sound

Speaker box, pickup wall, sound board

High modulus, rigidity and shock absorption

Others

Robot arm, papermaking and printing roller

Light weight, rigidity and fatigue resistance

Purified water source

Biocompatibility

Composite cable core

Lightweight, high specific strength, high specific modulus

Thermal field material

High purity, high temperature resistance and conductivity

Aerospace

Airplane

Primary structural members: main wing, tail wing and body



Secondary structural members: spoke, rudder, elevator

Interior decoration: seat, floor, luggage rack, window frame, etc

Brakes: brake discs

Light weight, fatigue resistance and heat resistance

Stealth structural materials

Wear resistance and thermal conductivity

Spacecraft

Satellite: antenna, battery beam, shell

Lightweight, dimensional stability

Space shuttle: wing, nose cone, brake disc



Light weight, ablation resistance and heat resistance



Rocket missile

Nozzle, engine shell, thermal insulation material, instrument compartment

Light weight, ablation resistance and heat resistance

Other

Space, satellite power station, space telescope

Lightweight, dimensional stability, heat resistance

Sports equipment



Fishing tackle, tennis racket, badminton racket, golf club, club head

Lightweight, rigid and sensitive

Ice hockey stick, snowboard, bicycle, rowing, bow, etc.

Lightweight, rigid, sensitivity, suck
