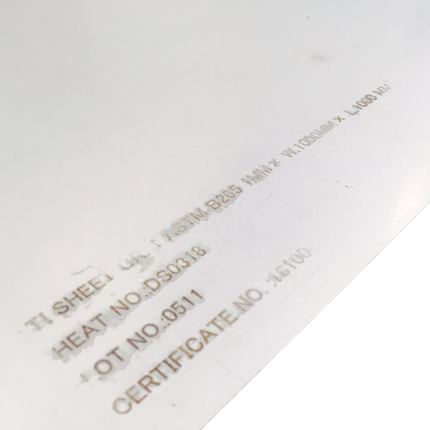

Commercial Pure Titanium Grade 1 Sheet and Plate

1.Titanium Alloy Grade 1 is “unalloyed” titanium offering optimum ductility and cold formability.
2.The material has high impact toughness and is readily weldable.
3.Size: Thickness0.3~60mm×Width400~3000mm×Length1000~6000mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade 1 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable of deep drawing.

Standard Specification: ASTM B265 , ASME SB265, ASTM F67, AMS-T-9046B CP4 AMS 4940 MIL-T-9046J CP4;

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade1	3.7025	R50250

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Titanium CP Grade 1	Balance	0.08	0.02	0.03	0.15	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Grade 1

240

138

Titanium and Titanium Alloy plate for Medical Equipment

Medical Titanium and Titanium Alloy plate for internal bone fixation

Medical Commercial Pure Titanium mesh plate for skull

Specification (mm) Thickness (0.5~1.0)×Width200mm Length (mm) (1000mm~1200mm) Standards: GB/T13810-2017, ASTM F67, ISO5823-2, Titanium Grade Grade1, Grade2;

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni Sheet and Plate
