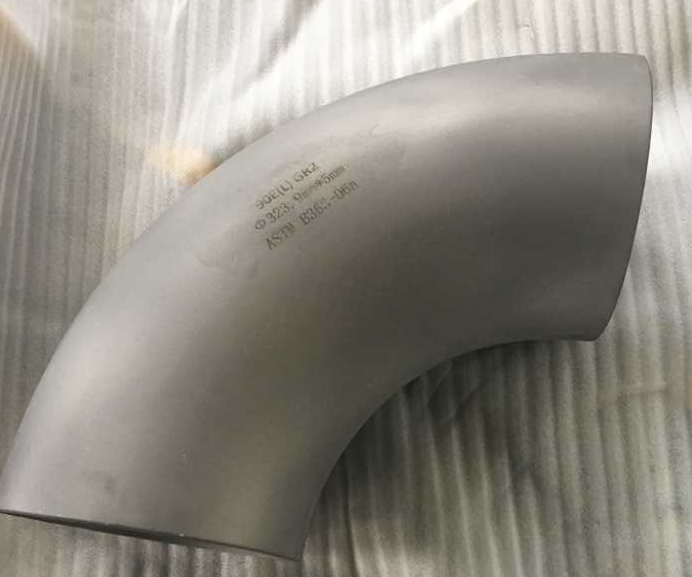

1.Titanium and Titanium Alloy Elbows

Products Inquiry

Product Details

Types

90° & 45° seamless or welded

Standards

ASTM B363 - ASME SB363 ;ASME B16.25 ;ASME B16.28 ;MSS SP-43

Size

Outside diameter: 1/2'' - 24" (21.34-609.5mm) wall thickness: sch 5S, 10S, 40S (STD), 80S (XS), 160S (XXS) (1.65-59.51mm)

Materials

Titanium Grade2,Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni,Titanium Alloy Grade7 Ti-0.2Pd



NPS

Outside Diameter





90° LR (A)

45° LR (B)

1/2"

21.3

38

16

3/4"

26.7

38

19

1"

33.4

38

22

1 1/4"

42.2

48

25

1 1/2"

48.3

57

29

2"

60.3

76

35

2 1/2"

73.0

95

44

3"

88.9

114

51

3 1/2"

101.6

133

57

4"

114.3

152

64

5"

141.3

190

79

6"

168.0

229

95

8"

219.1

305

127

10"

273.0

381

159

12"

323.8

457

190

14"

355.6

533

222

16"

406.40

610

254

18"

457

686

286

20"

508

762

318

22"

559

838

343

24"

610

914

381
