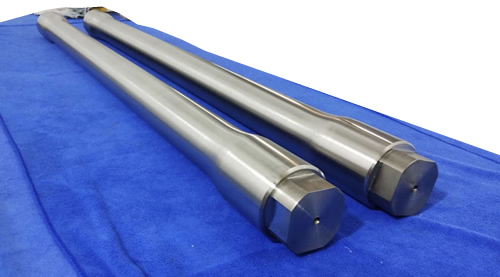

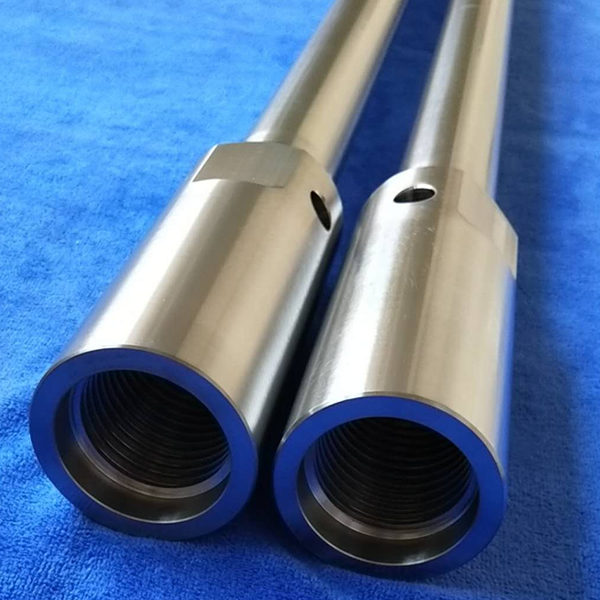

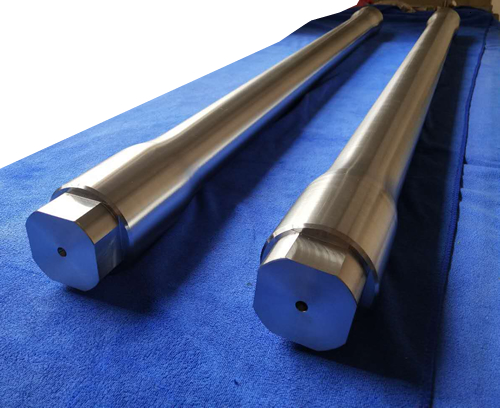

Titanium forging shaft for petroleum equipment

Titanium forging shaft for petroleum equipment is 172 titanium screw drill, Titanium Grade5 for oil drilling tool. The raw material of titanium rod has been pulled out for three times.
Size: Φ85mm×Length1300mm;
Standard: AMS4928;
Products Inquiry

Product Details

Products Name

Titanium forging shaft for petroleum equipment.

Specification

Φ85mm×Length1300mm

Material

Titanium Grade5

Standard

AMS 4928





Standard

Werkstoff No.

UNS

Titanium Alloy Grade5 Ti-6Al-4V

3.7165

R56400





Technical Data Sheet

Chemical Composition

Weight %

Ti

Al

V

C

Fe

N

O

H

Titanium Alloy Grade5 Ti-6Al-4V

Balance

5.5~6.75

3.5~4.5

0.08

0.4

0.05

0.2

0.015

Testing Value

Balance

6.08

4.09

＜0.009

0.136

＜0.013

0.113

0.0011



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

ksi

MPa

ksi

MPa

Titanium Alloy Grade5 Ti-6Al-4V

130

895

120

828

10

Testing Value

~

1025

~

946

11.8

~

1003

~

992

12.5
