Titanium and Steel Clad

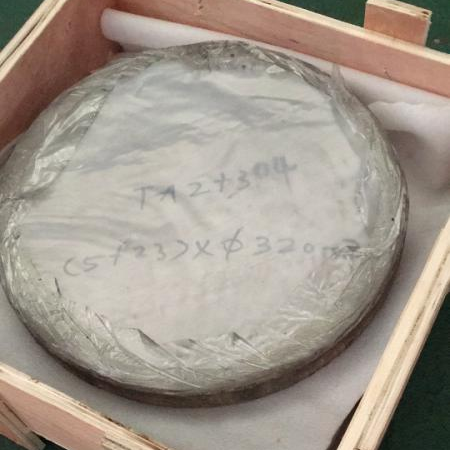

Titanium Plate and Stainless Steel Clad(Titanium Grade2/0Cr18Ni9)
Size: Φ320~1000×Thickness（5+28）;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

GOOLEETitanium and Steel Clad can not only meet the requirements of mechanical properties, but also save costs and improve economic benefits

Standard Specification: ASTM B265 , ASME SB265

Standard

Werkstoff No.

UNS

Commercial Pure Titanium Grade2

3.7035

R50400

Stainless Steel

Carbon Steel;

Copper;

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Commercial Pure Titanium Grade2	Balance	0.08	0.3	0.03	0.25	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade2

345

275

Medical Titanium and Titanium Alloy plate for internal bone fixation

Medical Commercial Pure Titanium mesh plate for skull

Specification (mm) Thickness (0.5~1.0)×Width200mm Length (mm) (1000mm~1200mm) Standards: GB/T13810-2017, ASTM F67, ISO5823-2, Titanium Grade Grade1, Grade2;

Commercial Pure Titanium Grade 4 Sheet and Plate

Titanium Alloy Grade 4 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable o

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni Sheet and Plate
