Mica Type Materials

GOOLEE Can provide all kinds of Mica Type Materials Mica tape, also known as fire-resistant mica tape, is made of (mica tape machine). It is a fire-resistant insulating material and can be divided into: mica tape for motors and mica tape for cables. According to the structure, it is divided into: double-sided tape, single-sided tape, three-in-one tape, double film tape, single film tape, etc. According to mica, it can be divided into: synthetic mica tape, phlogopite tape, and muscovite tape. The mica tape for fire-resistant safety cables is a high-performance mica insulation product with excellent high temperature resistance and combustion resistance.
Products Inquiry

Product Details

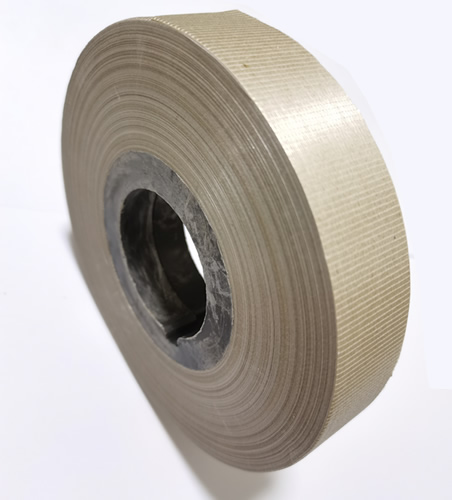

Product introduction:The refractory mica tape is made of high-quality phlogopite or synthetic mica paper as the base material, alkali free glass fiber cloth or polyene film as the reinforcing material, bonded with high-temperature silicone resin, and then baked, dried and cut into ribbon or roll insulating refractory materials. The finished product of fire-resistant mica tape is dry, non adhesive, with good bending and flexibility. It has high tensile strength when winding wires and cables at high speed. It is the ideal material of choice for manufacturing fire-resistant wires and cables. The product model and nominal thickness of fire-resistant mica tape are shown in the table below:

NO.

Products Name

Dimensions

Application

mm

5461

Double sided film reinforced phlogopite tape

Thickness0.14×Width10mm×Coil 100000mm

Length=100Meters

B、A

Main technical specifications:

No.

Description

technical specifications

1

Mica

≥55%

2

Organic silica gel

5-15%

3

Volatiles

≤1 %

4

tensile strength

≥70N/cm

5

Dielectric strength

≥10KV/mm

6

Insulation resistance

>1mΩ

7

Fire resistance characteristics

bronze mica

B(750-800 ℃),90min

Withstand voltage 1KV

Synthetic mica tape

A(950-1000 ℃),90min

Withstand voltage1KV
