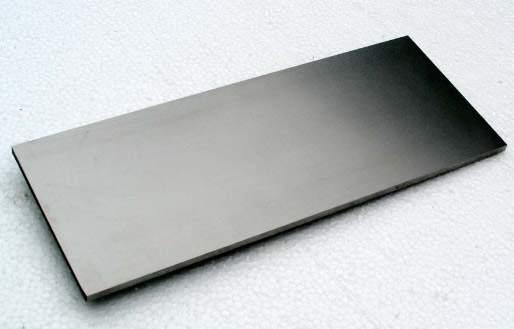

Tungsten and Tungsten alloys Sheet and Plate

GOOLEE provide tungsten plates with purity W ≥ 99.95%, which are widely used in ion implantation, sputtering and coating, medical CT, electronics and vacuum equipment.
Products Inquiry

Product Details

Surface treatment:
Hot-rolled Alkaline Cleaning Surface
Electrolytic Polish Surface
Cold-rolled Surface
Machined Surface
Polished
Properties:
High Temperature Resistance
High Hardness
High Density
Application:
Parts of Electric Light Source and Electron Tube
Medical Facilities
Obstruction of Radiation and Interference
Heat Shields of High Temperature Furnace
Heat Elements of High Temperature Furnace
Structures of High Temperature Furnace
Evaporation Boats





Specifications:

Product Name

Tungsten Plate/Tungsten Sheet

Item No.

PT74-TP/PT74-TS

Purity

W ≥ 99.95%

Process

Rolling

Tungsten Sheet Dimensions (Max, mm)

Thickness

Width

Length

0.05-0.1

100

L

0.10-0.15

100

200

0.15-0.20

205

1000

0.20-0.25

300

1000

0.25-0.30

330

1000

0.30-0.50

350

1000

0.50-0.80

330

1000

0.80-1.0

330

1000

1.-1.50

300

1000

1.50-3.0

300

1000

>3.0

300

L



Tungsten Polished Plate Dimensions (Max, mm)

Thickness

Width

Length

1.5-2.0

150

200

2.0-3.0

200

250

3.0-4.0

250

600

4.0-6.0

300

600

6.0-8.0

300

800

8.0-10.0

300

750

10.0-14.00

200

650

>14.0

200

500
