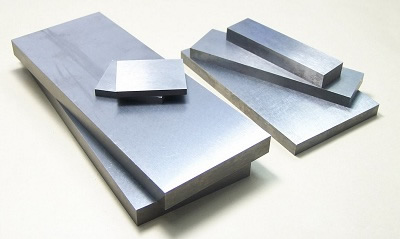

Molybdenum and Molybdenum alloys Sheet and Plate

Standard: ASTM B386
Material: Mo >99.95%
Density: >10.2g/cc
Products Inquiry

Product Details

Application:

Molybdenum sheet is used for making electric light source parts, components of electric vacuum and electric power semiconductor. It is also used for producing molybdenum boats, heat shield and heat bodies in high temperature furnace.

Specification:

We produce high quality molybdenum sheet as one of our hot product. We offer 3,000-5,000 kg molybdenum sheets per month and small order is also acceptable. Below are most of the standard sizes. If you do not see the size of molybdenum sheet that you require, please feel free to contact us.

Sheet

Thickness

Max. Width

Max. Length

Thickness Tolerance

< 0.004"

12"

72"

+/- 0.0004"

0.004" ~ 0.006"

16"

96"

+/- 0.0005"

0.006" ~ 0.010"

24"

132"

+/- 10%

0.010" ~ 0.090"

30"

132"

+/- 0.005"





Plate

Thickness

Max. Width

Max. Length

Thickness Tolerance

0.090" ~ 0.200"

30"

114"

+/- 0.008"

0.200" ~ 0.250"

24"

84"

+/- 2%

0.250" ~ 0.500"

24"

42"

+/- 2%

>0.500"

24"



+/- 2%



Surface Condition:

Surface can be supplied in a shiny, matte, satin, or as-rolled condition; dependent upon thickness and width parameters.

Heat treatment:

Molybdenum flat products are rolled and annealed to provide the optimum condition for the desired end use.



Composition:

Brand

Mo-1

Mo-2

Mo-3

Mo(%)

99.95

99.95

99.95

Other Element Content(%) ≤

Pb

0.001

Bi

0.001

Sn

0.001

Sd

0.001

Cd

0.001

Fe

0.005

0.006

0.010

Ni

0.002

0.003

0.005

Al

0.002

0.002

0.005

Si

0.003

0.003

0.010

Ca

0.002

0.002

0.005

Mg

0.001

0.002

0.003

P

0.001

0.001

0.002

C

0.005

0.008

0.010

O

0.003

0.005

0.050

N

0.001

0.003

-

Use for example
