1.Molybdenum and Molybdenum alloys Tubes and Pipes

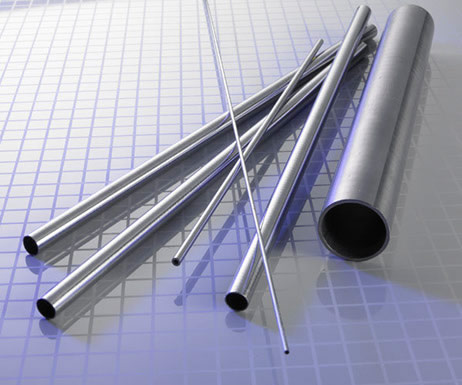

Product name: Molybdenum Tube/Pipe
Standard: ASTM B386
Material: Mo >99.95%
Density: >10.2g/cc
Products Inquiry

Product Details

Molybdenum tube (pipe) can be used at service temperature up to 1,800 degrees.

Used in components of electron tube, heaters of high-temperature furnaces, thermocouple retainers.

Specification:

We can supply seamless or welding molybdenum tube and pipe at very competitive prices of good quality. Below are most of the standard sizes. If you do not see the size of molybdenum tube that you require, please feel free to contact us.

Name

Outer Diameter (mm)

Wall Thickness (mm)

Length (mm)

Molybdenum Tube/Pipe

Size

Tolerance

Size

Tolerance

Size

Tolerance

<100

±1.0

<1

±0.1

<100~150

±2.0

100~200

±2.0

1~3

±0.25

150~350

±3.0

200~300

±3.0

3~10

±0.5

350~650

±4.0

300~400

±5.0

10~20

±1.0

650 ~ 2000

±5.0

>400

±7.0

20 ~ 30 max

±1.0

2000 ~ 6000 max

±5.0
