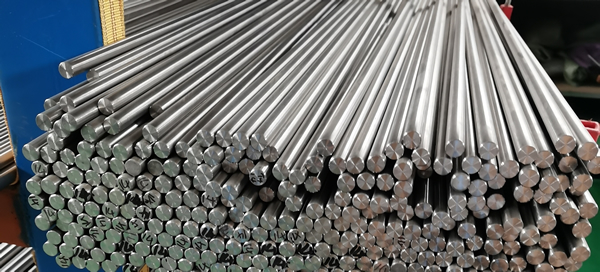

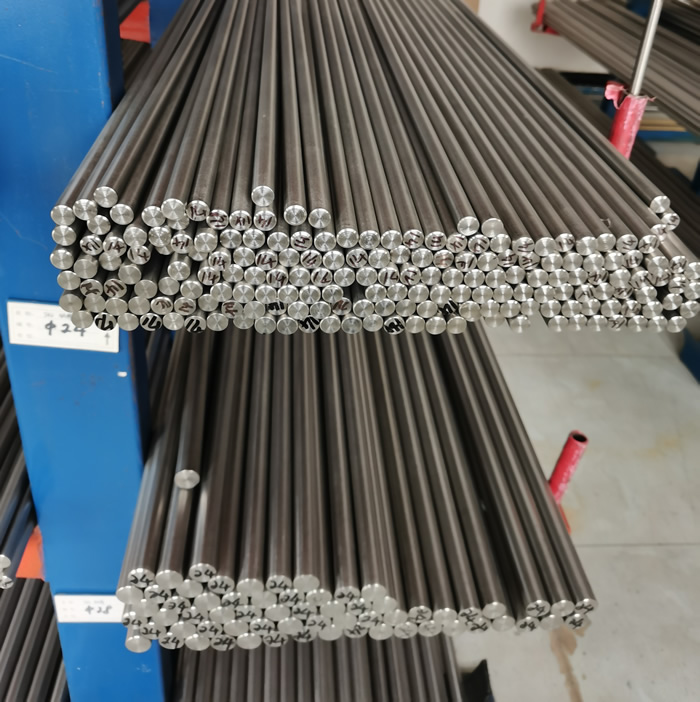

1.4Zirconium Alloys UNS R60705 Bar and Rod

1.UNS R60705 (Zr5, Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.18;
2.Zirconium has excellent corrosion resistance to various acids, alkalis and salts;
3.Size: Φ7mm~Φ150mm;
Products Inquiry

Product Details

Standard:ASTM B550, ASME SB550; ASTM B551, ASME SB551;

Standard

Werkstoff No.

UNS

Zirconium  Alloy UNS R60705

~

R60705



Technical Data Sheet

Chemical Composition

Weight %

Zirconium + Hafnium, min

Hafnium, max

Iron + Chromium, max

Tin

Hydrogen, max

Nitrogen, max

Carbon, max

Niobium (Columbium)

Oxygen, max

Zirconium  Alloy UNS R60705

95.5

4.5

0.2

~

0.005

0.025

0.05

2.0~3.0

0.18



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

ksi

MPa

ksi

MPa

Zirconium  Alloy UNS R60704

80

550

55

380

16
