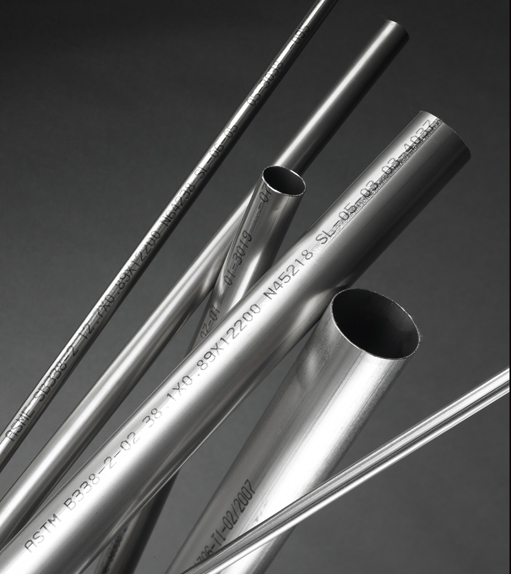

Commercial Pure Zirconium UNS R60700 Tubes and Pipes

Size: Outer Diameter8mm~133mm×Wall Thickness0.5mm~20mm×Length9000mm;
Standard: ASTM B523/B523M-07；ASME SB-523； ASTM B658/B658M-11；ASME SB-658/SB-658M；

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Standard:ASTM B523/B523M-07；ASME SB-523； ASTM B658/B658M-11；ASME SB-658/SB-658M

Standard	Werkstoff No.	UNS
Commercial Pure Zirconium UNS R60700	~	R60700

Technical Data Sheet

Chemical Composition
Weight %	Zirconium + Hafnium, min	Hafnium, max	Iron + Chromium, max	Tin	Hydrogen, max	Nitrogen, max	Carbon, max	Niobium (Columbium)	Sn	Oxygen, max
Commercial Pure Zirconium UNS R60700	99.2	4.5	0.2	~	~	0.025	0.05	~	~	0.16

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%
Commercial Pure Zirconium UNS R60700	55	380	44	305	2
