SHANGHAI GOOLEE SCIENCE AND TECHNOLOGY DEVELOPMENT CO.,LTD.

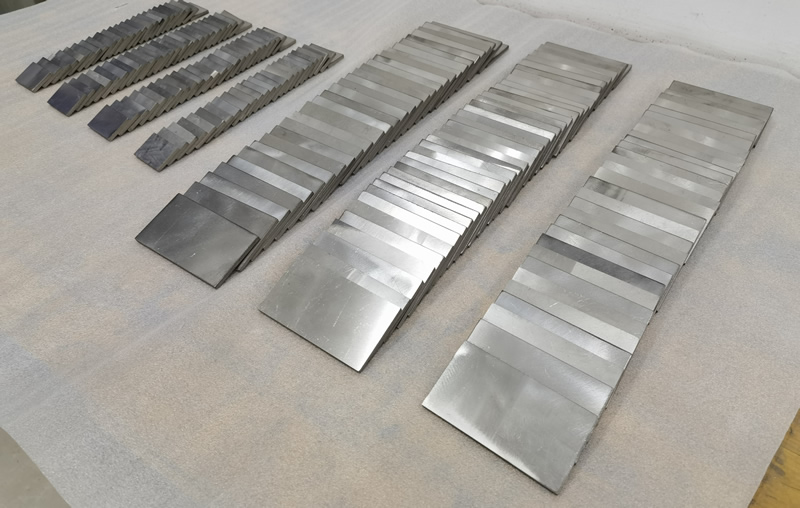

Have been provided a batch of TITANIUM TI811(Ti8AL1Mo1V) PLATE USE FOR AEROSPACE AIRCRAFT Airbus suppliers in France.
|
TITANIUM Ti811 (Ti-8Al-1Mo-1V) Acc. To drawing "TOOL-DEV04-00014-A"
|
|
NO.
|
Description
|
Size
mm
|
Quantities
|
Marks
|
|
1
|
MATERIAL：Ti811- DRAWINGS-00014-A
|

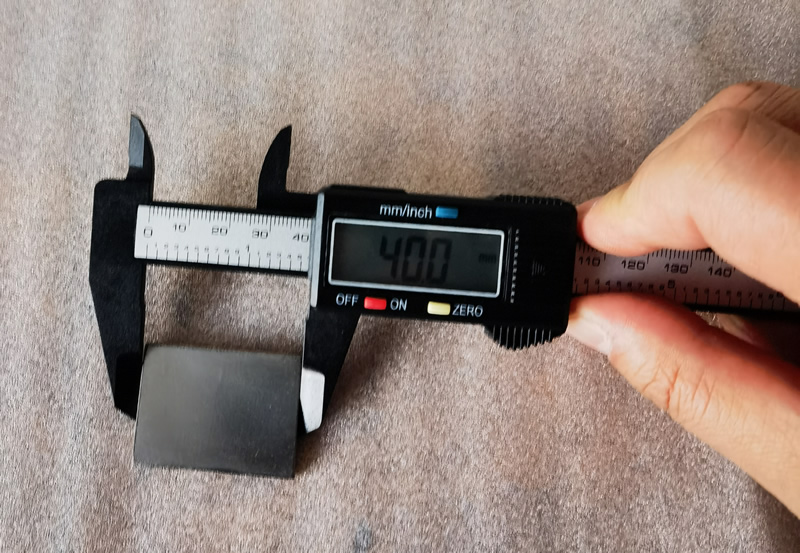

Thickness0.5mm×Width

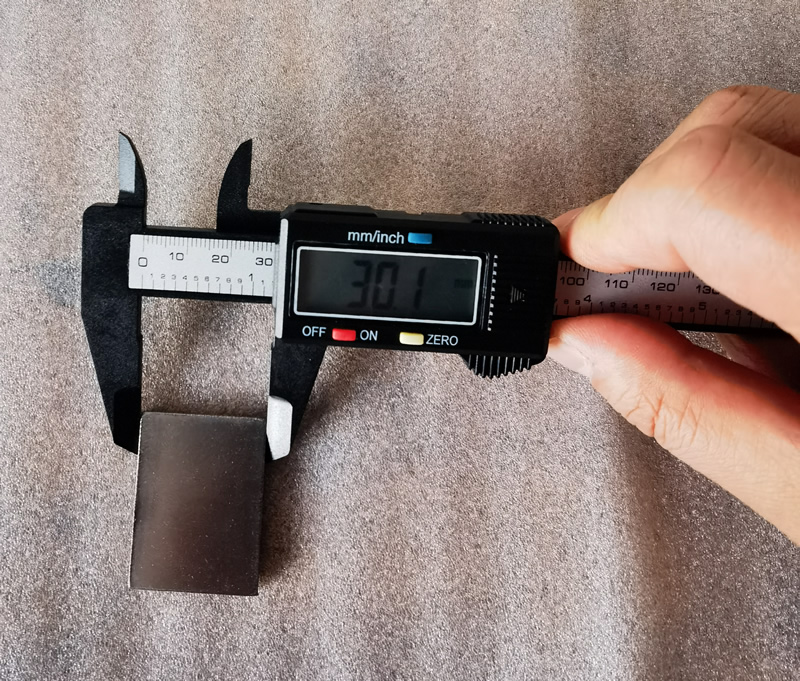

40×Length30mm
|
50
|
|
|
2
|
MATERIAL：Ti811- DRAWINGS-00502-A
|
Thickness1.5mm×Width
40×Length30mm
|
50
|
|
|
3
|
MATERIAL: Ti811 - DRAWINGS-00010-A
|
Thickness1mm×Width

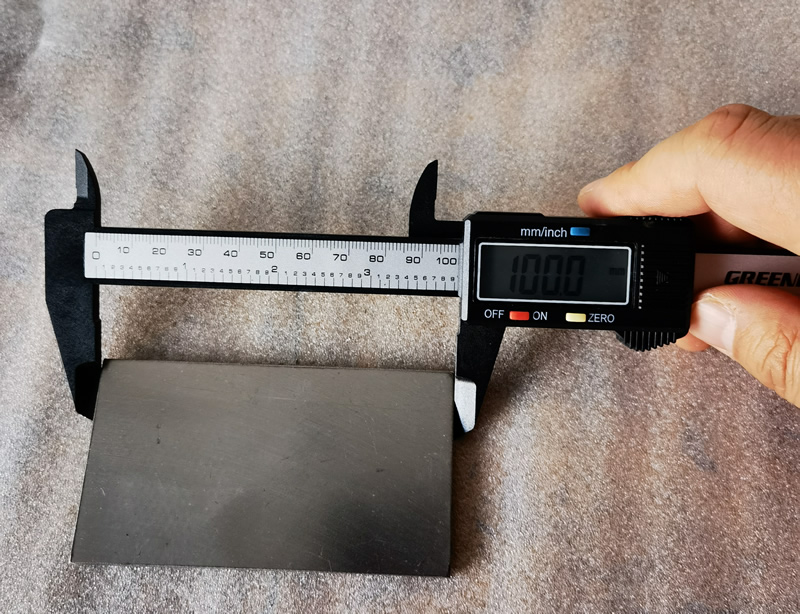

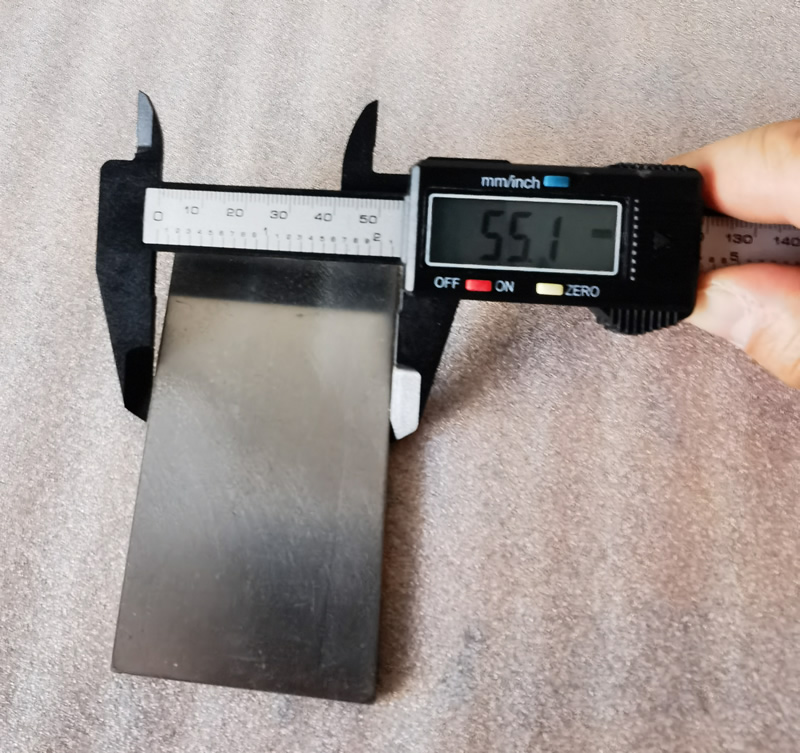

55mm×Length100mm
|
100
|
|
Ti811 titanium alloy
Ti811 alloy is a titanium alloy developed in the 1950s in the United States, which can be used for a long time at 450℃. Its nominal composition is Ti8Al1Mo1V (Chinese brand is TA11). Its phase transition point is 1040℃. This alloy is suitable for use asan aeroengine compressor blade material. The mechanical properties of TA11 alloy are shown in Table 1-4, and the common microstructures of TA11 alloy are shown in Figure 1-19~Figure 1-30.
Table 1-4 Mechanical Properties of TA11 Alloy
Fig. 1-19 The equiaxed structure of Ti811 alloy formed after processing and annealing in two-phase region:
Equiaxed α (white)+a small amount of intergranular β (Dark)
Figure 1-20 The bimodal structure of Ti811 alloy formed by processing in the two-phase region and annealing at 1000℃:
TransformingβThe matrix (dark color) contains fine needlesα，And equiaxed nascentαGrain (bright)
Fig. 1-21 Basket structure formed at the final forging temperature above the transformation point of Ti811 alloy:acicular α and β The total β Transforming the Organization
Fig. 1-22 Ti811 alloy plate is cooled in 760℃/8h furnace+790℃/20 'air,
α A small amount of intergranular is distributed on the matrix β (Dark)
Fig. 1-23 Dual structure of Ti811 alloy formed by 1010℃/1h oil quenching+590℃/20 'air cooling treatment
Fig. 1-24 Dual structure of Ti811 alloy formed by 1010℃/1h oil quenching+590℃/20 'air cooling treatment
Fig. 1-25 Needle like structure of Ti811 alloy formed by air cooling at 1100℃/1hβTransforming the Organization
Fig. 1-26 Ti811 alloy bar after precision forging in two-phase zone: elongated strip α organization
Fig. 1-27 Isoaxial Structure of Ti811 Alloy Bar after 910℃/1h Air Cooling+580℃/16h Air Cooling
Fig. 1-28 Ti811 alloy bar 980℃/1h air cooling+580℃/8h air cooling: equiaxedαAnd a small amountβTransforming the Organization
Fig. 1-29 Ti811 alloy bar 1010℃/1h air cooling+580℃/8h air cooling: equiaxedαAnd a small amountβTransforming the Organization
Fig. 1-30 Ti811 alloy plate heated to 1010℃, white surfaceαThe layer is oxygen stable due to oxygen infiltrationαLayer, the rest are full layersβTransforming the Organization
